OPTOFLEX Rubber Fiber-Optic Cable – Innovative High-Flex Solution for Data & Signal Transmission in Festoon Systems
Optimized for Robust Mechanical Durability, Superior EMI Shielding, and Exceptional Environmental Resilience in High-Speed Reeling and Cable Handling Applications
OPTOFLEX vs Competitors: Top Festoon Fiber-Optic Cables
In the rapidly evolving world of industrial automation and material handling, reliable data transmission has become as crucial as mechanical durability. For professionals in port operations, shipbuilding, and industrial facilities, choosing the right fiber-optic cable solution can mean the difference between seamless operations and costly downtime. This article examines how OPTOFLEX Rubber Fiber-Optic Cable compares to competing solutions in the festoon cable market, providing a comprehensive analysis for engineers, system integrators, and maintenance professionals.
Introduction to Festoon Fiber-Optic Cable Systems
Festoon systems represent one of the most demanding applications for cable technology. These systems, which suspend cables in loops between moving trolleys, subject cables to continuous flexing, environmental exposure, and mechanical stress. Traditional copper cables have long been the standard, but the increasing data transmission requirements of modern equipment have pushed the industry toward fiber-optic solutions.
Fiber-optic cables in festoon applications must withstand:
Constant bending and flexing
High-speed movement
Exposure to harsh environmental conditions
Torsional stress
Tension during operation
The challenge lies in creating a cable that combines the delicate glass fibers necessary for optical transmission with the robust construction required for industrial applications. This is where specialized solutions like OPTOFLEX enter the market.

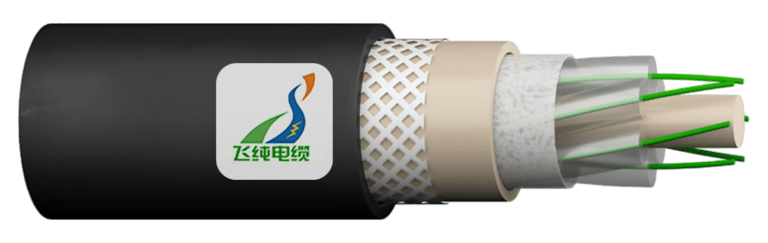

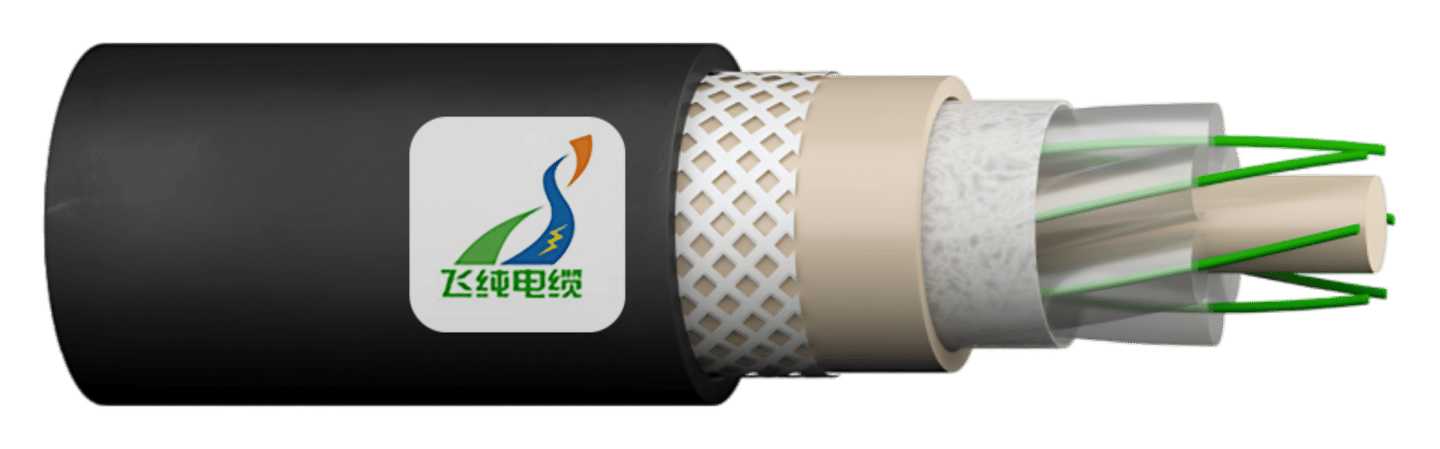

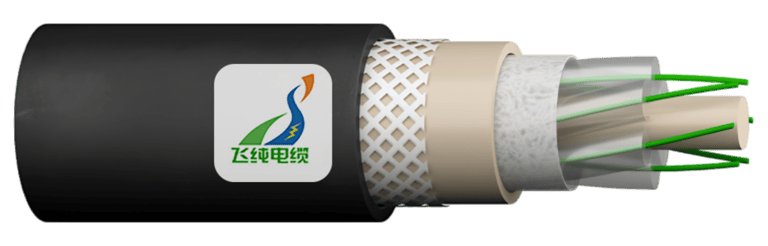

OPTOFLEX: Core Technology and Design
Innovative Construction
OPTOFLEX distinguishes itself through its unique construction methodology. At its core is a glass-fiber reinforced plastic (GFK) supporting element, around which six cores are specially laid in a single layer. This design provides exceptional stability while maintaining flexibility—a crucial balance for festoon applications.
The optical fibers are housed in PETP tubes filled with jelly, which provides:
Stress relief for the fibers during movement
Protection against moisture infiltration
Cushioning against mechanical shock
Stable positioning within the cable structure
Fiber Options and Performance Specifications
OPTOFLEX offers multiple fiber configurations to meet diverse application needs:
G62.5/125 µm multi-mode graded index fibers
G50/125 µm multi-mode graded index fibers
E9/125 µm single-mode graded index fibers
Each fiber features a cladding diameter of 125 µm and an overall fiber diameter of 250 µm, resulting in impressive performance metrics:
Low attenuation: <3.3 dB/km at 850 nm
High bandwidth: >400 MHz at 850 nm
Reliable data transmission even under movement
Environmental Protection
What truly sets OPTOFLEX apart is its dual-sheath design using chlorinated polyethylene (CM/CPE) with a special 5GM3 compound. This construction provides:
Outstanding resistance to industrial oils and lubricants
UV radiation protection for outdoor installations
Ozone resistance for long-term durability
Seawater resistance for maritime applications
This combination makes OPTOFLEX suitable for both indoor and outdoor applications across diverse industrial environments, including those with high humidity and corrosive agents.
Competitive Analysis: OPTOFLEX vs. Leading Alternatives
Environmental Resistance Evaluation
The environmental resistance of fiber-optic cables is critical for long-term reliability. Here's how OPTOFLEX compares:
OPTOFLEX offers:
Temperature range: -40°C to +80°C for fixed installations
Flexible application range: -35°C to +80°C
Superior oil, UV, ozone, and seawater resistance
Most standard festoon cables provide:
Narrower temperature ranges, typically -20°C to +70°C
Basic UV and oil resistance
Limited resistance to harsh environmental factors
Premium competitors generally offer:
Comparable temperature ranges
Good environmental resistance
Often specialized for specific conditions rather than all-around performance
The 5GM3 compound used in OPTOFLEX's sheathing provides a comprehensive environmental protection package that few competitors match across all categories simultaneously.
Data Transmission Capabilities
Modern industrial systems demand increasingly high data rates. Here's how the different solutions compare:
OPTOFLEX delivers:
Support for high-bandwidth applications
EMI immunity for reliable transmission in electrically noisy environments
Consistent performance under movement
Multiple fiber options to match specific bandwidth needs
Standard alternatives typically offer:
Adequate but lower bandwidth capabilities
Some EMI susceptibility depending on construction
Performance degradation under extreme movement
The multi-mode and single-mode fiber options in OPTOFLEX allow system designers to optimize for either distance (single-mode) or cost-effectiveness in shorter runs (multi-mode), providing flexibility that many competing products lack.
Application-Specific Advantages of OPTOFLEX

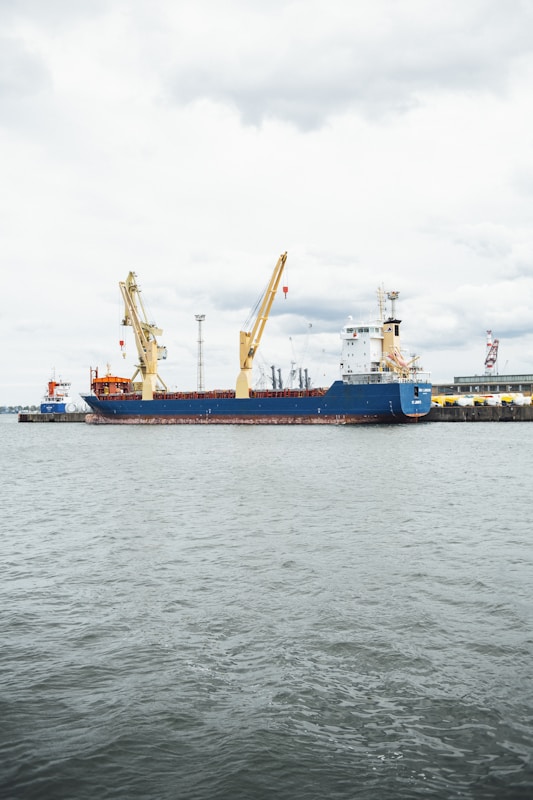

Crane and Port Operations
In port environments, cables face a perfect storm of challenges: salt spray, extreme temperatures, constant movement, and the need for reliable high-speed data transmission. OPTOFLEX's design addresses these specific challenges:
The seawater-resistant sheathing prevents corrosion and degradation
High tensile strength accommodates the long spans common in container cranes
EMI immunity ensures communication reliability even near high-power motors
Flexible temperature range accommodates both freezing winters and hot summers
Material Handling Systems
Automated warehouses and material handling systems operate continuously, with minimal downtime for maintenance. OPTOFLEX provides several advantages in these applications:
Reduced maintenance requirements due to superior durability
Consistent data transmission for precise positioning control
Ability to withstand the rapid acceleration/deceleration common in modern systems
Compatibility with standard fiber-optic connectors for easy integration
Automated Manufacturing
In manufacturing environments, cables must withstand exposure to cutting fluids, welding splatter, and other harsh conditions. OPTOFLEX's oil-resistant sheathing and robust construction make it particularly suitable for these applications, outperforming many competitors that lack comprehensive chemical resistance.
Installation and Maintenance Considerations
Ease of Installation
OPTOFLEX incorporates several features that simplify installation:
A specially developed fiber color code for easy identification
Compatible with standard fiber-optic connectors
Appropriate stiffness for easier handling during installation
Clear marking for identification
Compared to competitors, OPTOFLEX strikes a balance between flexibility and handling characteristics that many installers appreciate. Some competing products are either too rigid (making installation in festoon systems difficult) or too flexible (creating handling challenges during installation).
Long-Term Maintenance Requirements
The total cost of ownership for festoon cable systems includes not just the initial purchase but also maintenance and replacement costs. OPTOFLEX's design focuses on reducing these long-term costs:
Extended service life reduces replacement frequency
Robust construction minimizes damage during operation
Clear identification facilitates troubleshooting
Consistent performance reduces system adjustments
Many competing products require more frequent inspection and replacement, particularly in harsh environments or high-cycle applications.
Cost-Benefit Analysis
Initial Investment vs. Long-Term Value
While OPTOFLEX typically represents a higher initial investment than basic festoon fiber-optic cables, the total cost of ownership calculation favors OPTOFLEX in demanding applications:
Reduced downtime due to cable failures
Extended replacement intervals
Consistent performance throughout the cable's lifespan
Adaptability to changing environmental conditions
For less demanding applications, simpler and less expensive alternatives may provide adequate performance. However, for critical systems where reliability is paramount, OPTOFLEX's premium construction justifies the investment.
Application-Specific ROI
The return on investment for OPTOFLEX varies by application:
In port operations, where downtime can cost thousands of dollars per hour, the reliability of OPTOFLEX provides substantial ROI through prevented outages.
In automated warehouses, the consistent performance maintains picking accuracy and throughput, justifying the premium through operational efficiency.
In general industrial applications, the calculation depends on the criticality of the system and the harshness of the environment—the more demanding the application, the greater OPTOFLEX's relative advantage.
Compliance and Standards
International Certifications
OPTOFLEX is manufactured in accordance with multiple international standards:
FDDI
ISO/IEC 9314 Part 3
DIN VDE 0888
DIN EN 60811-404/IEC 60811-404
These certifications ensure that OPTOFLEX meets or exceeds industry requirements for both optical and electrical performance. While most competitors also meet basic standards, OPTOFLEX's compliance with this comprehensive set of specifications demonstrates its design for global deployment.
Industry-Specific Requirements
Different industries have specific requirements for cable performance. OPTOFLEX's versatile design allows it to meet the needs of:
Maritime applications (with seawater resistance)
Heavy industry (with oil and chemical resistance)
Outdoor installations (with UV and weather resistance)
High-cycle applications (with superior mechanical durability)
This versatility reduces the need for application-specific cable types, simplifying inventory management for maintenance departments.
Case Studies: OPTOFLEX in Action
Container Terminal Deployment
A major European container terminal replaced their standard festoon cables with OPTOFLEX after experiencing repeated failures during winter operations. The OPTOFLEX solution provided:
Reliable operation in temperatures down to -30°C
Resistance to the salt environment
Consistent data transmission for automated container handling
Reduced maintenance intervals from quarterly to annual
Automated Warehouse Implementation
A distribution center implemented OPTOFLEX in their high-bay storage system, achieving:
Increased system uptime from 94% to 99%
Elimination of data transmission errors that had caused picking mistakes
Reduced maintenance requirements despite 24/7 operation
Consistent performance even during summer temperature peaks
These real-world examples demonstrate OPTOFLEX's advantages in demanding applications, providing concrete evidence of its performance benefits compared to standard solutions.
Future-Proofing Your Installation
Bandwidth Considerations
As industrial systems continue to incorporate more sensors, cameras, and control systems, bandwidth requirements continue to increase. OPTOFLEX's support for both multi-mode and single-mode fibers provides:
Scalability for future bandwidth needs
Compatibility with next-generation optical equipment
Capacity for additional data streams as systems evolve
Many competing products offer more limited fiber options, potentially requiring complete cable replacement as bandwidth needs increase.
Emerging Application Support
The industrial landscape continues to evolve, with new applications emerging regularly. OPTOFLEX's robust design and comprehensive environmental resistance make it suitable for:
Automated guided vehicles (AGVs)
Collaborative robot systems
Advanced sensing and monitoring networks
Outdoor IoT deployments
This adaptability to emerging applications provides additional value over more narrowly designed competing products.
Conclusion: Making the Right Choice for Your Application
OPTOFLEX Rubber Fiber-Optic Cable represents a premium solution for festoon applications, offering superior mechanical durability, environmental resistance, and data transmission capabilities compared to standard alternatives. For critical applications in harsh environments, its advantages justify the higher initial investment through improved reliability and reduced maintenance.
However, for less demanding applications or budget-constrained projects, standard festoon fiber-optic cables may provide adequate performance at a lower cost. The decision should be based on a thorough assessment of:
Environmental conditions
Movement requirements
Data transmission needs
Criticality of the system
Maintenance capabilities
Budget constraints
By carefully evaluating these factors against the comparative performance of OPTOFLEX and competing solutions, engineers and system integrators can select the optimal fiber-optic cable for their specific festoon application, ensuring reliable performance and appropriate investment for their unique requirements.
References
1. "OPTOFLEX Flexible Fibre Optic Cable." Tullyn Trading. https://www.tullyn.com/product/optoflex-flexible-fibre-optic-cable/
2. "optoFlex, Fiber-optic, Automotive Link for Flexray-signals." Absolute EMC. https://absolute-emc.com/product/optoflex-fiber-optic-automotive-link-for-flexray-signals
3. "Reeling Festoon System Flexible Fibre Optic Cable." Hybird Resources. https://hybirdresources.com/product/reeling-festoon-system-flexible-fibre-optic-cable
4. International Standards Organization. ISO/IEC 9314 Part 3: "Information technology - Fibre Distributed Data Interface (FDDI)."
5. DIN VDE 0888: "Optical fibre cables for telecommunications and data processing."
6. DIN EN 60811-404/IEC 60811-404: "Electric and optical fibre cables - Test methods for non-metallic materials."
Frequently Asked Questions (FAQ)
Q: What is the primary function of the OPTOFLEX Rubber Fiber Optic Cable?
A: It is engineered for high-speed data and signal transmission in forced guiding applications, such as on reels, festoon systems, and cable tenders used in cranes and material handling equipment.Q: Which industries benefit most from this cable?
A: It is ideal for port operations, shipbuilding, and harbor logistics, where cranes and material handling systems require reliable communication and power transmission.Q: How does the cable ensure absolute immunity to electromagnetic interference (EMI)?
A: Its design incorporates high-quality fiber optics and a PUR sheath that minimizes EMI, ensuring clean, interference-free data transmission.Q: What are the key optical features of the cable?
A: It supports fibers with cladding diameters of 125 µm and an overall fiber diameter of 250 µm, providing low attenuation and high bandwidth for efficient signal transmission.Q: Which fiber types are available with this cable?
A: The cable supports G62.5/125 µm multi-mode graded index, G50/125 µm multi-mode graded index, and E9/125 µm single-mode graded index fibers.Q: What is the fiber core diameter specification?
A: The core diameter options include 62.5 µm, 50 µm, and 9 µm, allowing flexibility in achieving desired data rates and transmission quality.Q: How does the cable manage forced guiding conditions?
A: Its design with flexible PETP tubes filled with jelly and aramid reinforcement ensures that the fibers experience minimal stress during forced guiding on moving systems.Q: What makes this cable suitable for use on motor reels and cable cars?
A: Its high flexibility and optimized bending performance allow it to endure frequent bending and twisting without signal degradation.Q: How is the fiber optic component protected?
A: The fibers are enclosed in PETP tubes and further protected by a PUR outer sheath, which safeguards against physical damage and environmental factors.Q: What are the environmental resistance properties of this cable?
A: It is oil resistant, UV resistant, ozone resistant, and has excellent seawater resistance, making it ideal for harsh outdoor and maritime applications.Q: Can this cable operate effectively in cold climates?
A: Yes, it is designed to function reliably in a wide temperature range, making it suitable for cold environments encountered in ports and shipyards.Q: What are the ambient temperature ranges for fixed installations?
A: The cable is rated for fixed installations from -40°C to +80°C.Q: What ambient temperature range is available for flexible installations?
A: In flexible applications, it operates effectively between -35°C and +80°C.Q: What is the rated voltage of the cable?
A: It is rated at 0.6/1 kV, with a maximum of 1.2 kV, ideal for low voltage applications.Q: What is the nominal voltage in volts?
A: The cable has a nominal voltage of 1000V.Q: At what test voltage is the cable evaluated?
A: The cable undergoes testing at 5 kV to ensure its insulation integrity and performance.Q: What is the maximum conductor temperature during continuous operation?
A: It can operate continuously at up to 90°C.Q: What is the maximum short-circuit temperature the cable can withstand?
A: The cable is capable of withstanding short-circuit temperatures up to 250°C.Q: How does the cable's PUR outer sheath enhance its performance?
A: The PUR sheath provides outstanding chemical, UV, and seawater resistance, ensuring the cable remains durable in both indoor and outdoor environments.Q: What standard guidelines does the cable meet for reversed bending and roller bending?
A: It complies with DIN EN 60811-404 / IEC 60811-404 and DIN EN 60332-1-2 / IEC 60332-1-2 for excellent bending performance and flame retardancy.Q: What is the cable’s torsional stress capacity?
A: It is designed to endure torsional stresses of up to ±50° per meter, critical for dynamic applications.Q: How is the cable's permanent tensile strength enhanced?
A: The overall design, including the central support element and armouring, ensures a high permanent tensile strength of 500 N for the complete cable.Q: What are the recommended travel speeds for this cable in festoon systems?
A: It supports gantry reeling at speeds up to 120 m/min and trolley systems up to 240 m/min, though consultation is advised for speeds beyond these limits.Q: What bending radii are recommended for installation?
A: For fixed installations, the minimum bending radius is 125 mm, and for reeling applications, a minimum of 250 mm is recommended. S-type directional changes require a bending radius of 20×D.Q: How does the cable ensure low EMI in data-sensitive environments?
A: Its high-quality screening and symmetrical fiber arrangement ensure minimal electromagnetic interference, preserving data signal integrity.Q: Can the cable support high data rates for critical applications?
A: Yes, the integrated fiber optic system supports large bandwidths (e.g., >400 MHz at 850nm) ensuring high data rate transmission.Q: What is the fiber numerical aperture?
A: The fibers have a numerical aperture of approximately 0.275 ± 0.02, ensuring optimal light transmission.Q: How does the cable handle chromatic dispersion?
A: The fiber optic component exhibits chromatic dispersion of <3.5 ps/nm·km at 1300nm and <18 ps/nm·km at 1550nm, ensuring signal clarity over long distances.Q: How does the cable maintain its performance under continuous forced guiding?
A: The design features flexible PETP tubes with jelly filling and aramid reinforcement, which significantly reduce fiber stress during forced guiding operations.Q: What makes the OPTOFLEX Rubber Fiber Optic Cable ideal for use in port and shipbuilding environments?
A: Its robust mechanical design, high-speed data transmission capabilities, and exceptional resistance to harsh environmental conditions (such as oil, UV, and seawater) make it the optimal solution for ensuring uninterrupted, reliable performance in critical applications like crane and material handling systems.Q: What maintenance procedures are recommended for this cable?
A: Regular visual inspections, adherence to proper installation guidelines (including recommended bending radii), and periodic electrical and optical testing are essential to maintain long-term reliability.
